Tutorial #3: Maixduino Speech Recognition
In this tutorial we are going to explore the APU (Audio Accelerator) of the Maixduino.

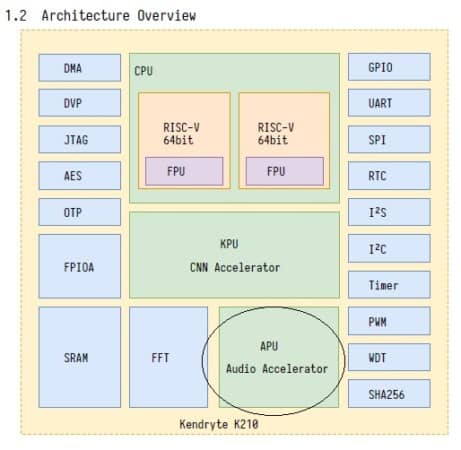

The Sipeed M1 chip comes with a high-performance microphone array processor that can achieve the following capabilities:
- Sound Source orientation
- Sound field imaging
- Beamforming
- Voice wake up
- Speech Recognition

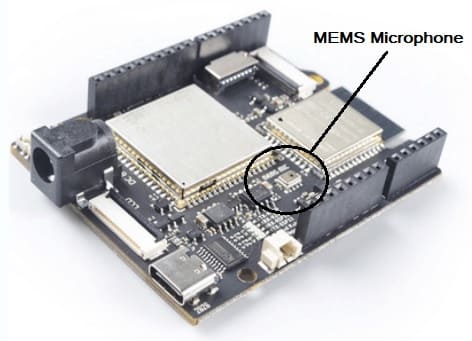

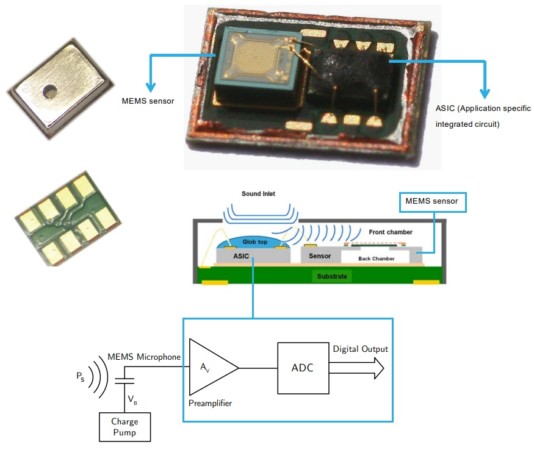

The Maixduino has an onboard MEMS microphone. In simple terms, the package is composed of two components. One is the sensor element, which is basically a capacitor that changes capacity when hit by sound waves. The other is an interface that processes the signal and involves the use of a pre-amplifier and an ADC (analog to digital converter).
In this tutorial, we are going to focus on the speech recognition modeling of a sample. I think it is a bit complicated to try to explain, but I will try my best. If any doubt arises, feel free to send me a message.
- Maixduino A Low Cost Board for Edge-Ai Aplications
- Tutorial #1: Getting Started With The Maixduino
- Tutorial #2: Maixduino L.C.D. & Camera
What Will We Need
- The Maixduino board
Our First Maixduino Voice Model
OK, let’s start working. The objective in this first stage is to control an LED with our voice by saying “ON” or “OFF.” In order to do this, we have to train the Maixduino to recognize our voice commands. The steps are as follows:
Go to File->Examples->Maix_Speech_Recognition and open get_voice_model example. Compile and transfer. Open the serial monitor window and adjust the baudrate to 115200. If nothing is shown on the serial monitor window, we need to press the reset button on the board because the code is in the Setup() function and only run once. Now we are ready to save our first model.
//THIS IS THE MAIN FILE
#include “Maix_Speech_Recognition.h”
#include “voice_model.h”
SpeechRecognizer rec;
void setup() {
pinMode(2, OUTPUT);
rec.begin();
Serial.begin(115200);
Serial.println(“init model…”);
rec.addVoiceModel(0, 0, on_0, fram_num_on_0);
rec.addVoiceModel(0, 1, on_1, fram_num_on_1);
rec.addVoiceModel(0, 2, on_2, fram_num_on_2);
rec.addVoiceModel(1, 0, off_0, fram_num_off_0);
rec.addVoiceModel(1, 1, off_1, fram_num_off_1);
rec.addVoiceModel(1, 2, off_2, fram_num_off_2);
Serial.println(“init model ok!”);
}void loop() {
int res;
res = rec.recognize();
Serial.printf(“res : %d “, res);
if (res > 0){
switch (res)
{
case 1:
digitalWrite(2, HIGH); //power on led
Serial.println(“rec : led on “);
break;
case 2:
digitalWrite(2, LOW); //power off ledSerial.println(“rec : led off “);
break;
default:
break;
}
}else
{
Serial.println(“recognize failed.”);
}
delay(500);
}
